3 Storey Commercial Parking Lifts PSH Multi Level Car Parking System

Brand Name : ChangYue

Model Number : PSH

Certification : CE ISO9001

Place of Origin : Shanghai, China

MOQ : 5 piece

Price : to be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Unit per month

Delivery Time : 30-60 days

Packaging Details : Standard export packing

Type : PSH(-1+2)

Material : Steel

Dive mode : motor + chain

Car size (LxWxH) : 5000*1850*2050(SUV)/1550(sedan)mm

Loading Capacity : 2000kg

Lifting speed : 5.5~7.5m/min

Sliding motor power : 0.2kW

Operation Mode : IC card reading / Manual button with keyboard

Power supply : 3 phases 5 wires, 380V, 50HZ

Contact Now

PSH (-1+2) 3-Level Pit Puzzle Parking System​​



Characteristics



It saves the land area and takes full use of the underground area. It can be designed with neighbored multi-sets layout to raise the parking numbers of cars. The middle and bottom cars may have advantages of anti-dust, anti-rain, anti-theft. It is safe and reliable and easy in operation.

Low area coverage and high usage rate of space; The levels and columns will be added to raise the number of cars according to the customer's requirements; It may be designed with full-closed style to adjust the surrounding environment; It operates steadily without noise and with fast operating speed and short parking and releasing time; Multi-ways of safety protection and series of safety protection devices for anti-dropping, anti-crashing and anti-overloading.



3 Storey Commercial Parking Lifts PSH Multi Level Car Parking System



Work Principle

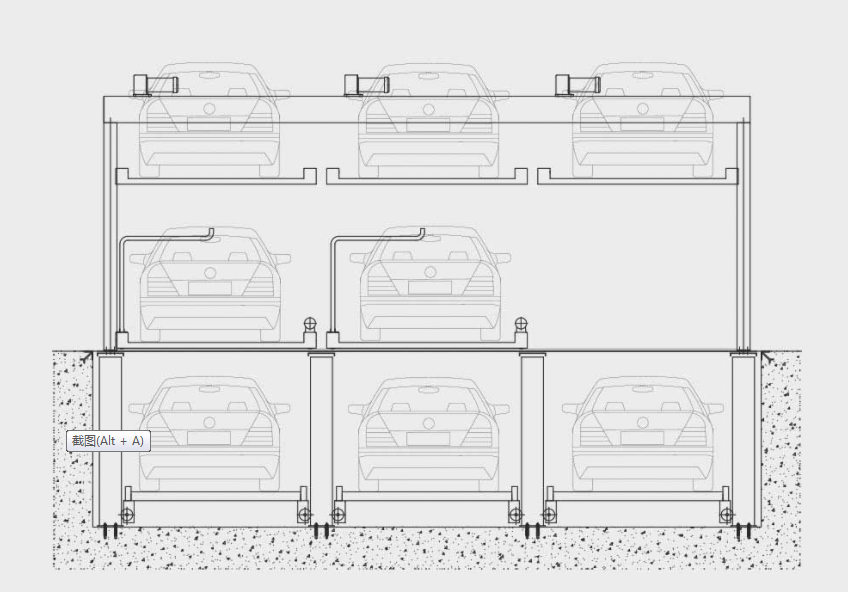

This system is designed with 3 levels, 1 in the pit, 2 on the ground, each column total 3 cars can lift up and down freely. There is 1 spare car on the ground level as an exchange space. The ground level car can slide left and right for upper car fall down. The ground car can go in and out freely, the pit car can lift up when the ground car slide to be a spare space, and go in and out then. The top car can fall down when the ground car slide to have the spare space. The ground level space has big pallets covering the pit area.





Main Structure



  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • PLC control system
  • Drive system
  • Safe-guard system



Technical Parameters



Item Parameters
Model PSH(-1+2)
Levels of system 3
Spaces Based on requirements
Size of car (L*W*H) 5000*1850*1550mm
5000*1850*2050mm
Weight of car 2000kg
Motor power Lift: 5.5~7.5KW
Slide: 0.2kw
Safeguard devices anti-fall frame
Modes of operation IC card reading / Manual button with keyboard
Controller PLC
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion painting
Parking way Forward in, Back out
Electricity 3 phases 5 wires, 380V, 50HZ



3 Storey Commercial Parking Lifts PSH Multi Level Car Parking System

Our advantages

3 Storey Commercial Parking Lifts PSH Multi Level Car Parking System
